Product Details
Product Description

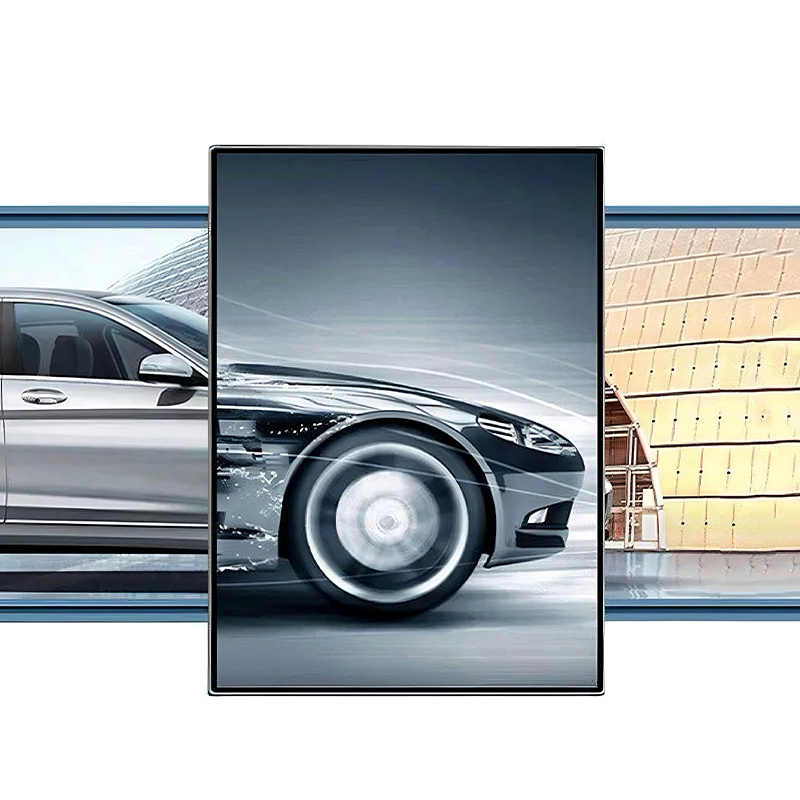

Sliding rail screen is a new type of interactive display device that achieves dynamic display of content by installing sensing circuit devices on the track and setting touch points on the display wall
Exhibition halls / Museums / Corporate exhibition halls / Science and technology museums / Digital exhibition halls
Mobile interaction: Viewers can switch between playing content by manually pushing, touching, or remotely controlling the LCD screen;
Touch system: supports touch screen interaction, displays corresponding different content through different touch points, and can perform interactive operations such as zooming in, zooming out, and rotating;
Storage function: With diverse forms of expression and rich and colorful content, the playback screen is closely integrated with the background wall content;
Automatic Cruise Control: The new interactive slide screen has an automatic cruise control function, which completes the interactive display of the entire exhibition at a constant speed;
Diverse forms: Four types of slides can be customized according to site requirements: linear slides, curved slides, circular slides, or floor slides, with a sense of technology and beauty;
Standby screensaver: Even in standby mode when no one is using it, the display screen saver remains dynamic, keeping the exhibition hall active;
1、Large amount of information: Interactive slide screens can display more rich information, allowing users to gain a deeper understanding of enterprise content;
2、Strong interactivity: Creative interactive methods deepen the user's impression;
3、Automated control: providing convenient content display for users;
4、Stereoscopic display: The three-dimensional display of content enlivens the atmosphere of the venue;
5、Clear information: A clear and concise display method allows users to quickly understand product information;
6、Cost saving: Intelligent commentary saves the cost of commentators;
Technical Parameters
Item | Description | |
Track | Workmanship | Axis high-temperature treatment&high-strength rigidity |
Material | Aluminum alloy material&axis hard chrome plating | |
Length | The combination length can reach 20 meters | |
Position Sensor | Effective sensing travel | 202m |
Location update frequency | 16 times/second | |
Resolution | 1920*1080 | |
Power-off memory function | The machine can remember its location normally even if it is not turned on, and does not require power supply | |
Motor Control System | Central control for movement direction, NPN input | |
Infinite speed regulation, supporting analog voltage PWM control | ||
Acceleration and deceleration control, 0.3s~10s | ||
Brushless DC reduction motor with high torque. | ||
System or software crashes, automatically stopping | ||
Fault detection and protection functions | ||
Limit controller, motor driver, motor, limit switch, wire, drag chain, screws, fixing parts, silent wheel, baffle, power supply, transmission belt | ||
Slow stop and slow start system | There is a buffer program for starting and stopping the equipment to ensure smooth operation and low noise. Simultaneously reducing equipment shaking | |
Background sync | Support real-time synchronization of background images | |
Motion sensing accuracy | 0.1mm,Any point within the effective stroke can be set as a sensing point | |
Automatic patrol system | Automatic reciprocating motion | |
Touch screen interactive system | Customize added buttons, display windows, video and picture mixing windows, custom jump logic, support gestures for zooming in and out, and scrolling pages. | |
Animation display system | Multiple 3D models,including mannequins and robots.The screen movement will make corresponding actions according to the direction (optional) | |
Control Method | Touch screen control, motor control, central control, manual push-pull, mobile phone control, iPad control, remote control, radar sensing | |
Embedded 3D file display | 3D display files can be embedded and flipped and enlarged through the touch screen | |
Multi-screen and multi-window synchronization | Supports multi-screen and multi-window synchronization, or reverse synchronization, which can be used to automatically open and close doors. | |
Video explanation | Move to the designated position, stop moving, start explaining, then continue to move to the next position and start explaining | |
Visualization of typesetting interface | Content and UI interface can be modified according to requirements | |
Multi-level pages | Support pop-up multi-level page display, customize the position and style of directory buttons | |
FAQ
Q1: What are the working modes of the slide screen?
A1: The slide screen has manual control, slide touch screen control, radar sensing, iPad control, central control, remote control and other working modes, which can be selected according to your needs.
Q2: Will the interactive slide screen experience unstable slides during use?
A2: This product selects high-quality slide rail materials, such as aluminum alloy or stainless steel, to ensure the stability and durability of the slide rail. Secondly, during the installation process, it is necessary to strictly follow the specifications to ensure that the connection between the slide rail and the bracket is firm and reliable. Finally, it is necessary to regularly inspect and maintain the sliding rail according to the actual situation, to ensure that the sliding rail always maintains a good operating condition.
Q3: Is there a possibility of poor audience interaction experience during actual application?
A3: This situation may be caused by unreasonable interactive content design, inconvenient interactive methods, or malfunctioning interactive equipment. To solve this problem, the first step is to carefully design the interactive content to ensure that it is interesting, interactive, and practical. Secondly, it is necessary to optimize the interaction methods to make them more convenient and user-friendly, such as supporting multiple interaction methods such as touch screen and voice recognition. Finally, it is necessary to regularly inspect and maintain interactive devices to ensure that they are always in good working condition.
Q4: Is it convenient to upgrade the system used for interactive slide screens?
A4: We will provide you with a suitable upgrade plan to ensure the smooth progress of the upgrade process. Secondly, comprehensive testing will also be conducted on the upgraded system to ensure its stability and reliability. We provide you with comprehensive technical support and after-sales service to ensure that you receive timely assistance during use.
